California Supervolcano Has Split Personality

Mar 2, 2010 03:00 AM ET // by Larry O'Hanlon

The official USGS prognosis puts the odds of an eruption in any given year at less than one percent.

USGS

THE GIST:

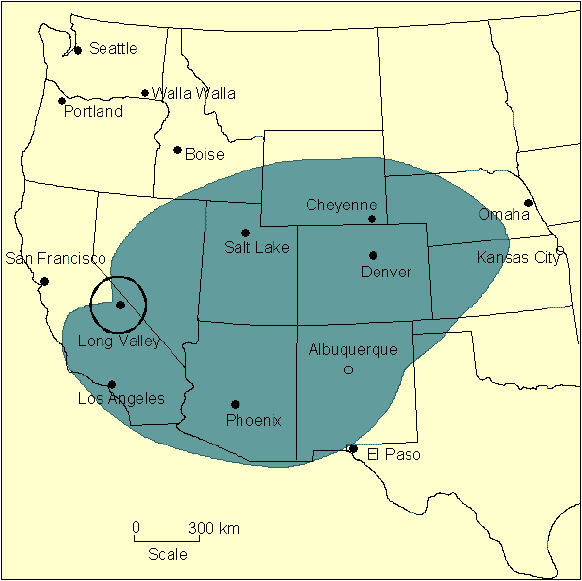

- Long Vally caldera has sent ash as far east as the Mississippi River in past eruptions.

- Though the chances of an eruption are low, we could see this kind of explosive behavior again.

- Even with the potential danger, there is still no reason to give up your retreat at Mammoth Mountain.

There's some good news and bad news regarding a sleeping supervolcano in California.

The good news is that the Long Valley caldera, like her big sister Yellowstone in Wyoming, is not getting ready to super-erupt and again cover half of North America in ash. The bad news is that when Long Valley does someday get hot and bothered again, it may prove to be surprisingly bi-polar.

A new study that uses argon isotopes in the lava rocks to refine the timing of different eruptions over the last 160,000 years reveals that when Long Valley has spewed forth in the past, it's been in two very different styles at nearly the same time, which makes it a bit of a volcanic oddity.

One eruption style is a gloppy, not very explosive lava called basalt that poses little blast danger unless it contacts groundwater or snow.

The other sort of eruption involves more glass-rich or "silicic" magma that appears at Long Valley to hitch a ride with the basalt to the surface. When it gets there, it tends to come out of the ground in the more explosive, ashy style of Mount St. Helens.

"The result was kind of surprising to me," said geologist Gail Mahood of Stanford University and author of the new study in the latest issue of the Geological Society of America Bulletin. "It's the pairing (of the two kinds of eruptions) that was surprising."

Long Valley and the associated Mammoth Mountain resort area in east-central California have been extensively studied and monitored by geologists who have seen signs over the years that there is still hot basalt underground. Such signs include the doming of the earth in some places, the die-off of trees and dangerous releases of deadly carbon dioxide gas.

But there is a silver lining even to these ominous signs from below, said Mahood.

"The fact that we see big basalts come up means there is no big magma body down there," Mahood told Discovery News. That's because a vast pool of magma would absorb the basalt, she explained. "That's good news."

Another bit of good news is that all of the most recent eruptions happened along a straight north-to-south about 10 kilometers wide. "That means you can focus on this area," Mahood said.

"Professor Mahood's new research provides important additional information on the timing of past eruptions, but her results do not alter our prognosis for future eruptions in the Long Valley area," said Margaret Mangan, the Scientist-in-Charge of the U.S. Geological Survey's Long Valley Observatory.

That official prognosis puts the odds of an eruption in any given year at less than one percent. That's about the same odds for the San Andreas Fault letting loose another magnitude 8 earthquake like the one that destroyed San Francisco in 1906 on any given day.

"It's a low probability," agrees Mahood. She adds that it would not surprise her if there was a small eruption in the next 100 years somewhere along that north-south line. The worst case -- but not highly likely -- scenario is that the eruption would be at Mammoth Mountain.

Long Valley Caldera

Long Valley Caldera is a depression in eastern California that is adjacent to Mammoth Mountain. The valley is one of the earth's largest calderas, measuring about 20 mi (32 km) long (east-west) and 11 mi (18 km) wide (north-south), and up to 3,000 ft (910 m) deep.

Long Valley was formed 760,000 years ago when a huge volcanic eruption released very hot ash that later cooled to form the Bishop tuff that is common to the area. The eruption was so colossal that the magma chamber under the now destroyed volcano was emptied to the point of collapse. The collapse itself caused an even larger secondary eruption of pyroclastic ash that burned and buried thousands of square miles. Ash from this eruption blanketed much of the western part of what is now the United States.

Geography

Map of the Long Valley Caldera

The caldera is a giant bowl-shaped depression, approximately 20 miles (32 km) wide, surrounded by mountains, but open to the southeast. The elevation of the bottom of the bowl ranges from 6,500 to 8,500 ft (2,000 to 2,600 m), being higher in the west.^[2]

Near the center of the bowl, there is a resurgent dome formed by magmatic uplift. The southeastern slope from the caldera down towards Bishop, California is filled with the Bishop tuff, solidified ash that was ejected during the stupendous eruption that created the caldera. The Bishop tuff is thousands of feet thick and is cut by the Owens River Gorge, formed during the Pleistocene when the caldera filled with water and overtopped its rim.

The rim of the caldera is formed from pre-existing rock, rising about 3,000 ft (910 m) above the caldera floor.^[2] However, the eastern rim is less high, only about 500 ft (150 m).^[2]

Mammoth Mountain is a lava dome complex in the southwestern corner of the caldera, consisting of about 12 rhyodacite and dacite overlapping domes.^[2][3] These domes formed in a long series of eruptions from 110,000 to 57,000 years ago, building a volcano that reaches 11,059 feet (3,371 m) in elevation.^[4]

The Mono-Inyo Craters are a 25 mi (40 km)-long volcanic chain that sit along a narrow, north–south-trending fissure system extending along the western rim of the caldera from Mammoth Mountain to the north shore of Mono Lake.^[5] The Mono-Inyo Craters erupted from 40,000 to 600 years ago, from a magma source separate from the Long Valley Caldera.^[6]

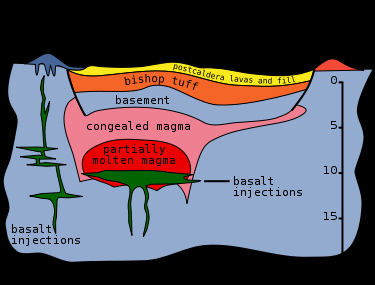

Although the area is still volcanically active, the caldera itself is extinct: seismic mapping has shown the magma body deep underground is mostly crystallized and not molten anymore. The caldera has an extensive hydrothermal system. Casa Diablo Hot Springs at the base of the resurgent dome hosts a geothermal power plant. Hot Creek cuts into part of the resurgent dome and passes through hot springs. The warm water of Hot Creek supports many trout, and is used at the Hot Creek Fish Hatchery.^[7] The creek was closed to swimming in 2006 after geothermal activity in the area increased, and was still closed as of 2012.^[7][8] There are a number of other hot springs in the area, some of which are open to bathers.

Geology

Caldera

The tectonic causes of the Long Valley volcanism are still largely unexplained and are therefore a matter of much ongoing research. Long Valley is not above a hotspot as is Yellowstone or Hawaii, nor is it the result of subduction such as that which produces the volcanism of the Cascades.

The known volcanic history of the Long Valley Caldera area started several million years ago when magma began to collect several miles below the surface. Volcanic activity became concentrated in the vicinity of the present site of Long Valley Caldera 3.1 to 2.5 million years ago with eruptions of rhyodacite followed by high-silica rhyolite from 2.1 to 0.8 million years ago. After some time a cluster of mostly rhyolitic volcanoes formed in the area. All told, about 1,500 sq mi (3,900 km²) were covered by lava.

All but one of these volcanoes, 1–2 million year old Glass Mountain (made of obsidian),^[9]:264 was destroyed by the major eruption of the area 760,000 years ago, which released 600 km³ (140 cu mi) of material from vents just inside the margin of the caldera (the 1980 Mount St. Helens eruption was 1.2 km³ (0.29 cu mi). About half of this material was ejected in a series of pyroclastic flows of a very hot, 1,500 °F (820 °C), mixture of noxious gas, pumice, and ash that covered the surrounding area hundreds of feet (meters) deep. One lobe of this material moved south into Owens Valley, past where Big Pine, California now lies. Another lobe moved west over the crest of the Sierra Nevada and into the drainage of the San Joaquin River. The rest of the pyroclastic material along with 300 km³ (72 cu mi) of other matter, was blown as far as 25 mi (40 km) into the air where winds distributed it as far away as eastern Nebraska and Kansas. However, much of the material ejected straight into the air fell back to earth to fill the 2–3 km (1.2–1.9 mi) deep caldera two-thirds to its rim.

Eruptions

Subsequent eruptions from the Long Valley magma chamber were confined within the caldera with extrusions of relatively hot (crystal-free) rhyolite 700,000 to 600,000 years ago as the caldera floor was upwarped to form the resurgent dome followed by extrusions of cooler, crystal-rich moat rhyolite at 200,000-year intervals (500,000, 300,000, and 100,000 years ago) in clockwise succession around the resurgent dome.^[2] The declining volcanic activity and increasingly crystalline lava extruded over the last 650,000 years, as well as other trends, suggest that the magma reservoir under the caldera has now largely crystallized and is unlikely to produce large-scale eruptions in the future.^[10]

The Long Valley volcano is unusual in that it has produced eruptions of both basaltic and silicic lava in the same geological place.^[11]

Water from the Owens River filled the caldera to a depth of 300 m (1,000 ft) as of 600,000 years ago. At that time, the lake surface was at an elevation near 7,500 feet (2,300 m).^[12] The lake drained sometime in the last 100,000 years after it overtopped the southern rim of the caldera, eroded the sill, and created the Owens River Gorge. A human-made dam in the gorge has created Lake Crowley, a partial restoration of the original lake. Since the great eruption, many hot springs developed in the area and the resurgent dome has uplifted.

During the last ice age, glaciers filled the canyons leading to Long Valley, but the valley floor was clear of ice. Excellent examples of terminal moraines can be seen at Long Valley: these moraines are the debris left from glacial sculpting. Laurel Creek, Convict Creek, and McGee Creek all have prominent moraines.

Recent activity

In May 1980, a strong earthquake swarm that included four Richter magnitude 6 earthquakes struck the southern margin of Long Valley Caldera associated with a 10 in (25 cm), dome-shaped uplift of the caldera floor.^[13][14] These events marked the onset of the latest period of caldera unrest that continues to this day.^[13] This ongoing unrest includes recurring earthquake swarms and continued dome-shaped uplift of the central section of the caldera (the resurgent dome) accompanied by changes in thermal springs and gas emissions.^[13] After the quake another road was created as an escape route. Its name at first was proposed as the "Mammoth Escape Route" but was changed to the Mammoth Scenic Loop after Mammoth area businesses and land owners complained.

In 1982, the United States Geological Survey under the Volcano Hazards Program began an intensive effort to monitor and study geologic unrest in Long Valley Caldera.^[13] The goal of this effort is to provide residents and civil authorities in the area reliable information on the nature of the potential hazards posed by this unrest and timely warning of an impending volcanic eruption, should it develop.^[13] Most, perhaps all, volcanic eruptions are preceded and accompanied by geophysical and geochemical changes in the volcanic system.^[13] Common precursory indicators of volcanic activity include increased seismicity, ground deformation, and variations in the nature and rate of gas emissions.^[13]

Hydrothermal system

The Long Valley Caldera hosts an active hydrothermal system that includes hot springs, fumaroles (steam vents), and mineral deposits. Hot springs exist primarily in the eastern half of the caldera where land-surface elevations are relatively low; fumaroles exist primarily in the western half where elevations are higher. Mineral deposits from thermal activity are found on an uplifted area called the resurgent dome, at Little Hot Creek springs, Hot Creek Gorge, and other locations in the south and east moats of the caldera.^[15]

Hot springs discharge primarily in Hot Creek Gorge, along Little Hot Creek, and in the Alkali Lakes area. The largest springs are in Hot Creek Gorge where about 250 l (66 US gal) per second of thermal water discharge and account for about 80% of the total thermal water discharge in the caldera. At the other extreme are springs at Hot Creek Fish Hatchery which contain a small component (2–5%) of thermal water that raises water temperatures about 5 °C (9.0 °F) higher than background temperatures. Use of the warm spring water in the hatcherytrout growth rates are faster in the warm water than in ambient stream temperatures in Long Valley.^[15] has increased fish production because

In hydrothermal systems the circulation of groundwater is driven by a combination of topography and heat sources. In Long Valley Caldera, the system is recharged primarily from snow-melt in the highlands around the western and southern rims of the caldera. The meteoric water infiltrates to depths of a few kilometers (miles) where it is heated to at least 220 °C (428 °F) by hot rock near geologically young intrusions. Upflow occurs in the west moat where the heated water with lower density rises along steeply inclined fractures to depths of 1–2 km (0.62–1.24 mi). This hydrothermal fluid flows laterally, down the hydraulic gradient, from the west to the southeast around the resurgent dome and then eastward to discharge points along Hot Creek and around Crowley Lake. Reservoir temperatures in the volcanic fill decline from 220 °C (428 °F) near the Inyo Craters to 50 °C (122 °F) near Crowley Lake due to a combination of heat loss and mixing with cold water.^[15]

Hot Creek has been a popular local swimming hole for decades. Over a dozen people have died in Hot Creek since the late 1960s but most of these deaths happened to people who ignored the numerous warning signs and attempted to use the hydrothermal pools as hot tubs (like the stream portion of the creek, these pools alternate in temperature but the eruptions in the pools are of super-heated water in already very hot water). Recent geothermal instability has led to its temporary closure for swimming. Officials are unsure of when (if ever) Hot Creek will officially reopen for swimming.

Hydrothermal activity has altered many rocks in the caldera, transforming them into travertine and clay. At the Huntley clay mine white chalky clay called kaolinite is mined; the kaolinite is exposed on the resurgent dome and appears as a brilliant white band.

Tourism and hiking

The largest tourist attraction in the caldera is the Mammoth Mountain Ski Area: the area offers skiing and snowboarding in the winter, and mountain biking in the summer. The Hot Creek tourist attraction was closed to swimming in 2006 due to increased geothermal activity.

Hiking and off-road vehicle driving is available throughout the caldera, and in the glacial valleys of the Sherwin Range, immediately to the south of the caldera. Hikers can hike to several lakes in these glacial valleys, including Valentine Lake, Convict Lake, Lake Dorothy, and Laurel Lakes. Crowley Lake, at the south end of the caldera, is noted for its fishing.

The nearest hotel accommodations to the caldera are in Mammoth Lakes, California. There are also campgrounds scattered throughout the caldera, and in the mountains near the edge of the caldera.

Recent fatalities

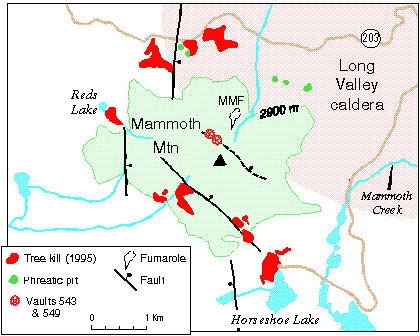

In April 2006, three members of the Mammoth Mountain Ski Area ski patrol died while on duty. All three died from suffocation by carbon dioxide when they fell into a fumarole on the slopes of the mountain. ^[16]

Long Valley Supervolcano

Near the Nevada border

-

-
Long Valley, Calif., near the Nevada border
Volcano Number:        120314-A
Volcano Type: Caldera
Volcano Status:           Pleistocene-Fumarolic
Last Known Eruption:            Pleistocene
Summit Elevation:      3390 m            11,122 feet
Latitude:         37.70°N           37°42'0"N
Longitude:      118.87°W        118°52'0"W

The large 17 x 32 km Long Valley caldera east of the central Sierra Nevada Range formed as a result of the voluminous Bishop Tuff eruption about 760,000 years ago. Resurgent doming in the central part of the caldera occurred shortly afterwards, followed by rhyolitic eruptions from the caldera moat and the eruption of rhyodacite from outer ring fracture vents, ending about 50,000 years ago.

During early resurgent doming the caldera was filled with a large lake that left strandlines on the caldera walls and the resurgent dome island; the lake eventually drained through the Owens River Gorge.

The caldera remains thermally active, with many hot springs and fumaroles, and has had significant deformation, seismicity, and other unrest in recent years. The late-Pleistocene to Holocene Inyo Craters cut the NW topographic rim of the caldera, and along with Mammoth Mountain on the SW topographic rim, are west of the structural caldera and are chemically and tectonically distinct from the Long Valley magmatic system.

Long Valley Caldera at a Glance

Long Valley Caldera is a 15- by 30-km oval-shaped depression located 20 km south of Mono Lake along the east side of the Sierra Nevada in east-central California. This area of eastern California has produced numerous volcanic eruptions over the past 3 million years, including the massive caldera-forming eruption 760,000 years ago. The most recent eruption occurred just 250 years ago in Mono Lake at the north end of Mono-Inyo Craters volcanic chain.

Volcanic Unrest

In May of 1980, a strong earthquake swarm that included four magnitude 6 earthquakes struck the southern margin of Long Valley Caldera associated with a 25-cm, dome-shaped uplift of the caldera floor. These events marked the onset of the latest period of caldera unrest that continues to this day. This ongoing unrest includes recurring earthquake swarms and continued dome-shaped uplift of the central section of the caldera (the resurgent dome) accompanied by changes in thermal springs and gas emissions.

USGS Monitoring

In 1982, the U.S. Geological Survey under the Volcano Hazards Program began an intensive effort to monitor and study geologic unrest in Long Valley caldera. The goal of this effort is to provide residents and civil authorities in the area reliable information on the nature of the potential hazards posed by this unrest and timely warning of an impending volcanic eruption, should it develop.

Most, perhaps all, volcanic eruptions are preceded and accompanied by geophysical and geochemical changes in the volcanic system. Common precursory indicators of volcanic activity include increased seismicity, ground deformation, and variations in the nature and rate of gas emissions.

Text and Maps from USGS http://lvo.wr.usgs.gov

Credit: NASA, The Discovery Channel, The Smithsonian Institute, USGS

Credit also to : http://www.solcomhouse.com/longvalley.htm
Thanks to Stephanie Relfe for this link

The next big disaster epic out of Hollywood might want to borrow its script from a new study on catastrophic super volcanoes.

It turns out the rare occurrence — which involves enough magma and ash to cover whole continents — could virtually wipe out the world sooner than originally thought, according to researchers from Vanderbilt University in Nashville.

“The generation of such large pools of magma and their eruption are fascinating phenomena from a scientific standpoint, but also constitute a major threat to humanity,” according to the findings, which were published in the journal Public Library of Science ONE.

Geologists have commonly believed that super volcanoes can take as many as 100,000 to 200,000 years until giant pools of magma brewing beneath them are formed and belch into the sky.

Now, the study proposes that it’s a matter of thousands or even hundreds of years before these natural, ticking time-bombs could blow their tops.

“Our study suggests that when these exceptionally large magma pools form they are ephemeral and cannot exist very long without erupting,” Vanderbilt geologist Guilherme Gualda said in a statement.

The team studied a deposit of rock in Long Valley, Calif., where a super volcano is believed to have erupted about 760,000 years ago. The large magma pool likely formed in 500 to 3,000 years, with the ensuing eruption spewing volcanic debris on about half of North America, according to the findings.

These super eruptions are about 100 times the force of volcanic eruptions known in our lifetime, such as the Mount St. Helens disaster in 1980 that sent gray ash raining down on eastern Washington state.

Scientists have identified about 50 super eruptions in history, the most recent one in New Zealand about 26,000 years ago, according to NASA.

But before bunker builders whip themselves into a frenzy over super volcanoes, the geological community doesn’t believe any known volcanic hotspots, such as in Yellowstone National Park, are currently gearing up for another super eruption.

Still, “the fact that at Yellowstone there’s no giant magma body right now doesn’t mean that in hundreds to thousands of years we couldn’t have one,” Gualda said, according to ScienceNews.org
